Louvre Screens

Architectural Louvre Screening Systems

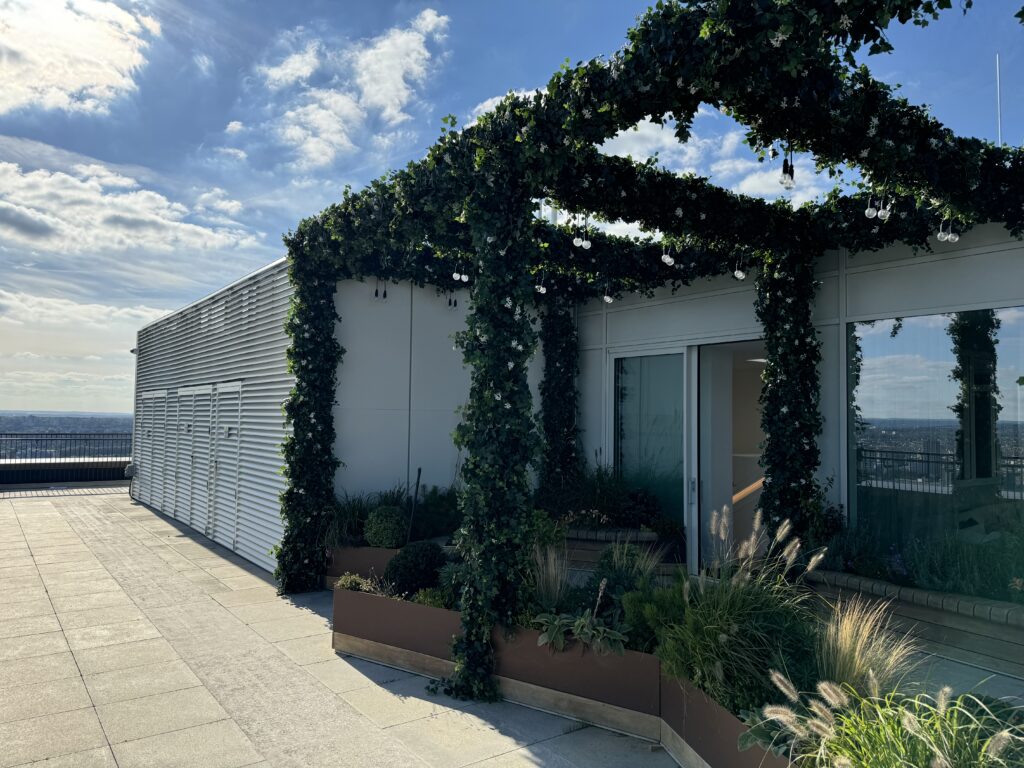

Waterloo Acoustics designs, manufactures and installs extruded aluminium louvre screening systems for rooftop plant, HVAC equipment, industrial installations, service areas and car parks.

Available as factory-built modules or continuous-line assemblies, our systems can be fixed to existing steelwork or structural openings, or supplied as a complete package with purpose-designed supporting steelwork. Every installation is tailored to meet the required airflow, weathering, visual-screening and architectural requirements.

WLC75 Louvre System

The WLC75 system uses a 75 mm extruded aluminium blade mounted at a 75 mm pitch, providing approximately 50% free area. Blades can be installed conventionally or inverted where increased visual screening is required.

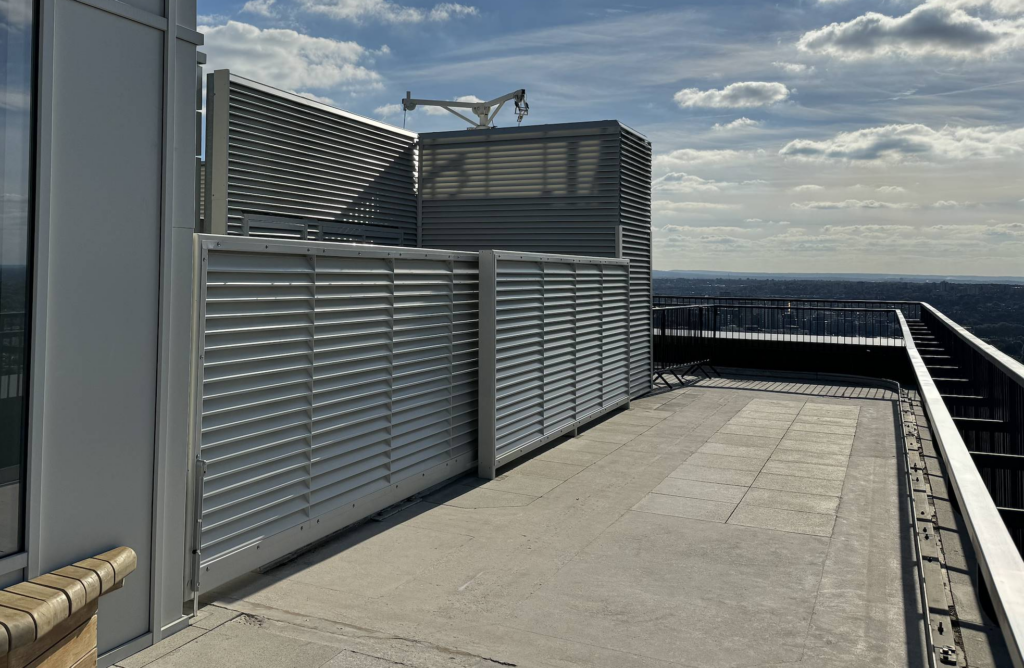

Typical louvre screen assembly

Options include:

• Modular panels or continuous-line screening
• Purpose-designed supporting steelwork
• Integration with cladding and structural openings
• Polyester powder-coated, anodised or mill finishes
• Standard RAL and BS colours
• Bird mesh, insect screen and vermin guards
• Blanking panels, penetrations and head or sill sections

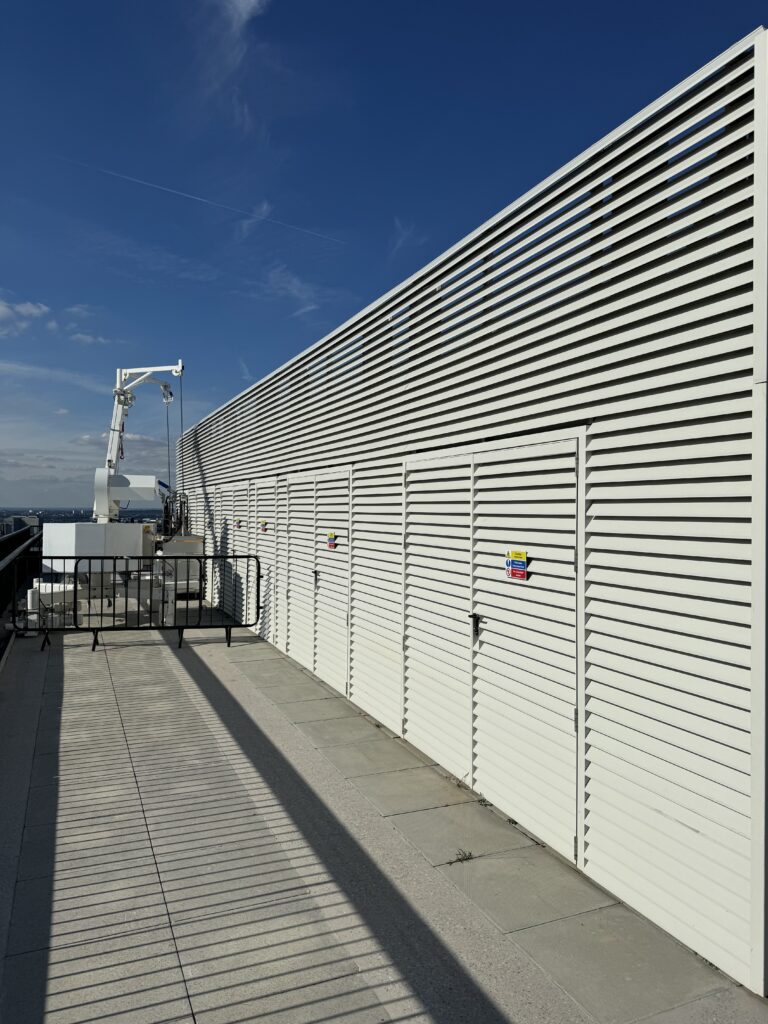

• Matching louvred access doors
• Complete design, manufacture and installation

Technical Downloads

WLC75 Louvre Screen System – Product and Technical Guide

Planning a Louvre Screen?

Send us your drawings, specification or required dimensions. We can provide initial budget pricing, design guidance or a complete turnkey package.
